Wonder Cutter WC40000F25W Ultrasonic Cutter / Wondercutter S

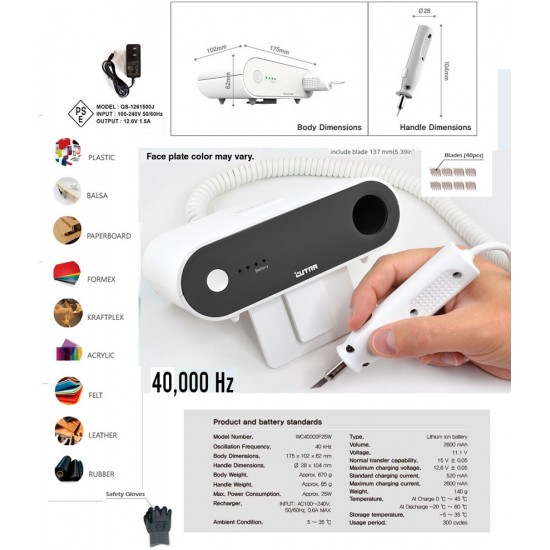

Specifications:
Model Number: WC40000F25W
Oscillation Frequency: 40 kHz
Body Dimensions: 175 x 102 x 62 mm
Handle Dimensions: dia28 x 104 mm
Body Weight: Approx. 670 g
Handle Weight: Approx. 85 g
Max. Power Consumption: 30W
Charger INPUT: AC100-240V, 50/60Hz, 1.5A MAX
Ambient Condition: 5 - 35oc
Use Time Approx. 1 hr 30 min. cycled
Battery type Lithium-Ion
Nominal Capacity: 2600 mAh
Rated Voltage: 11.1 V
Battery Charging Time: Approx. 2 hrs
Usage period: 300 cycles

Here's a breakdown of what it can effectively cut:
- PLASTIC
- PVC FOAM BOARD
- FELT
- EVA FOAM
- PAPERBOARD
- RUBBER
- LEATHER
- PMMA
- ABS

The thickness each material can be cut to may vary, so it's important to refer to the user manual for specific cutting capabilities and settings.

If you encounter issues with the kit not functioning properly:
1. Check and ensure that all screws are securely tightened.
2. Confirm that the blade is correctly installed and seated.

To reset your product, please follow these steps:
1. Ensure the device is powered off.
2. Press and hold the button on the handpiece.
3. While holding the handpiece button, press and hold the power button for 2 seconds until you hear a beep, indicating the reset is complete.

To assist with troubleshooting, if your device is not functioning correctly, you can watch our guide video on how to properly tighten the set screw. Click HERE to view the guide video.

-----------------------------------------------------------
Certifications / Patents
Certificate of Patent
Certificate of Trademark Registration
A patent application for its technology
"Gold Prize"44th Salon International Des Inventions Geneve 2016
"Gold Prize"Silicon Valley International Invention Festival 2018
"Gold Prize"Seoul International Invention Fair 2016
Ce, fcc, rohs, kc, Venture Business Confirmation
