Griffon BPL35043 1/35 WWII German PzKpfw.IV Ausf.J (Late) w/Ausf.F Turret Big Detail Set for Dragon #6824

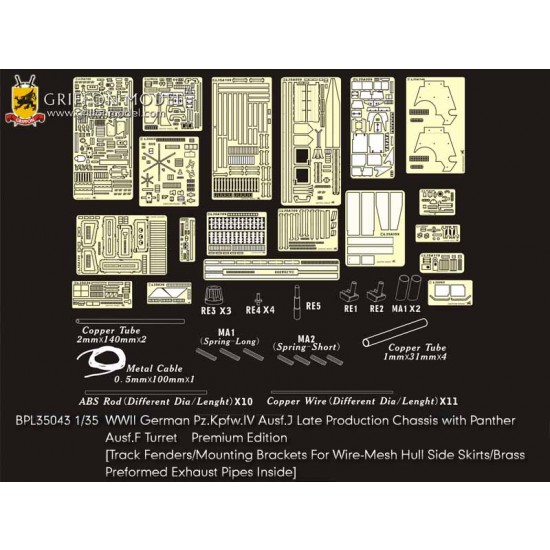

This 1/35 Full Detail-Upgraded Set includes
(1)Photoetched Fret * 19
(2)Resin Antenna Part * 8
(3)Brass Preformed Vertical Exhaust Pipe * 2
(4)Resin Exhaust Pipe Base * 2
(5)Preformed Spring * 7
(6)Brass Hollow Pipe * 6
(7)Metal Cable (?0.5mm) * 400mm
(8)Auxiliary Material: ABS Rod, Brass Wire
Suit for Dragon 6824 Kit
Detail Summary
(1)Full Set of Reworked Track Fenders
- Both-Side Detailed Folding Front/Rear Mud Flaps with Preformed Springs
- Realistic Supporting Frame Layout Like Real Vehicle
- Both-Side Detailed Anti-Skid Plates
- Flaps for Hull Side Engine Cooling Air Vents Included
(2)Reworked Forward-Most Hull Side Armour Skirts with 2 Types of Mounting Brackets
(3)Reworked Full Set of Mounting Brackets to Attach the Pipe-Type Hanging Rails to Tank Superstructure
(4)Brass Hollow Pipe (External Dia. 2mm / Internal Dia. 1.64mm) for the Pipe-Type Hanging Rail
(5)Reworked Hanger on the Wire-Mesh Type Hull Side Armour Skirts - 2 Hanging Configurations of the Upper Hanger for Normal Tracks / Wider Eastern Tracks
(6)Reworked Full Set of Mounting Brackets on the Track Guards for Armour Skirts
(2 Configurations Make-able)
- Folded-up to Hanging Hull Side Armour Skirts When Normal Tracks Fitted
- Extended to Hanging Hull Side Armour Skirts When Wider Eastern Tracks Fitted
(7)Reworked Spare Track Links Mounts with Track Links Lock on the Hull Bow Plate
(8)Reworked Mounting Brackets for Spare Track Links on the Hull Front Glacis Plate
(9)Headlamp Damaged Status (Optional)
(10)Full Interior&Exterior Detail of Driver&Radio Operator Hatch (11)Mounting Brackets for Wooden Jack Block (Preformed Spring for Fasten Chain Include)
(12)Bracket for Spare Antenna (With Optional Empty Status of Bracket)
(13)Full Set of Detailed Clamps/Mounting Brackets for On-Vehicle-Tools
(Optional Empty Status of Clamps/Mountingt Brackets)
(14)Brass Hollow Pipe for Barrel Cleaning Rod
(15)Reworked Spare Road Wheels Storage Tray
(16)Reworked Early/Late Type Notek Multifunction Rear Convoy Light -Detailed Supporting Brackets
-Optional Panel for Early Type Notek Multifunction Convoy Light
(17)Add Covers to the Key Holes on the Engine Deck
(18)Detailed Engine Bay Air Inlet / Outlet Grille Interior
(19)Reworked Mounting Hooks for Spare Track Links on the Hull Rear Plate
(20)Reworked Tow Cable Hooks on the Hull Rear Plate
(21)Metal Tow Cable (?0.5mm) * 150mm * 2
(22)Turret Roof Mounted Extra Spaced Armour Plate (Optional)
(23)Turret Fitted Poison Gas Detection Panels
(24)Interior Detail of Turret Rear Hatch
(25)Resin Antenna Base Provide the Option to Upgrade 3 Types of Antenna Arrangement
A.Standard Vehicle with
1. StbAt 2m Antenna * 1
B.Sd.Kfz.267 Standard Command Vehicle with
1. StbAt 2m Antenna * 1
2. Standard Type StAtD 1.8m Antenna with/without Extension Mast
C.Sd.Kfz.268 Ground to Air Communication Vehicle with
1. StbAt 2m Antenna * 1
2. StabAt 1.4m Antenna * 1
(26)Preformed Springs(For Folding Front/Rear End of Track Fenders)
(27)Reworked Standard/Non-Standard Type Spare Track Links Mounts
(28)Brass Preformed Late Version Vertical Exhaust Pipes with Resin Base
