Griffon S-BPL35023 1/35 WWII 2cm Flakpanzer IV Wirbelwind Ausf.G Super Full Detail Set for Dragon 6565/6342

1/35 WWII German 2cm Flakpanzer IV "Wirbelwind" Early Production with/without Zimmerit Coating (Pz.Kpfw.IV Ausf.G Chassis Based Vehicle) Royal Edition

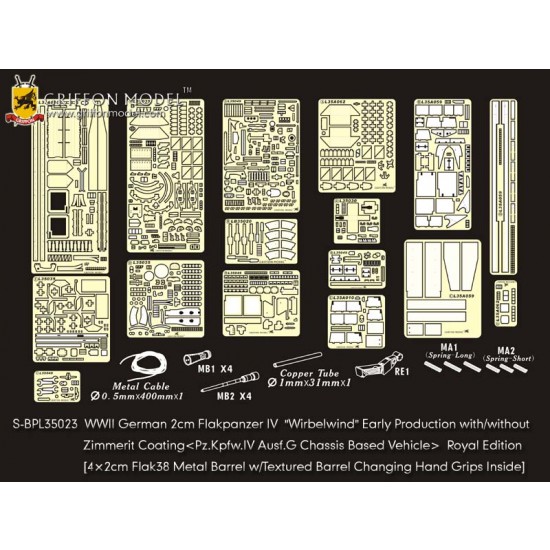

This 1/35 Basic Detail-Upgraded Set includes
(1)Photoetched Fret * 16
(2)Brass 2cm Flak38 Flash Suppressor * 4
(3)Aluminum 2cm Flak38 Barrel w/Textured Barrel Changing Hand Grips
* 4
(4)Resin Late Type Switchbox / Sight Bracket * 1
(5)Preformed Spring * 6
(6)Brass Hollow Pipe * 1
(7)Metal Cable (diameter: 0.5mm) * 400mm
(8)Auxiliary Material: ABS Rod, Brass Wire
Suit for Dragon 6565 / 6342 Kit

Detail Summary
Chassis Section (Pz.Kpfw.IV Ausf.G Based Vehicle with/without Zimmerit Coating)
(1)Full Set of Reworked Track Fenders (Could be Assembled with
Original Zimmerit Coated Plastic Front & Rear End)
- Both-Side Detailed Folding Front/Rear Mud Flaps with Preformed
Springs
- Realistic Supporting Frame Layout Like Real Vehicle
- Both-Side Detailed Anti-Skid Plates
- Flaps for Hull Side Engine Cooling Air Vents Included
(2)Reworked Early / Late Type Spare Track Links Mounts with Track
Links Lock on the Hull Bow Plate
(3)Reworked Mounting Brackets for Spare Track Links on the Hull Front
Glacis Plate
(4)Headlamp Damaged Status(Optional)
(5)Full Interior&Exterior Detail of Driver&Radio Operator Hatch
(6)Reworked Mounting Brackets for Wooden Jack Block
(7)Reworked Spare Road Wheels Storage Tray
(8)Reworked Starboard Clamps for Spare Track Links (Optional Empty
Clamps)
(9)Full Set of Detailed Clamps/Mounting Brackets for On-Vehicle-Tools
(Optional Empty Status of Clamps/Mountingt Brackets)
(10)Add Covers to the Key Holes on the Engine Deck
(11)Reworked Early/Late Type Notek Multifunction Rear Convoy Light
-Detailed Supporting Brackets
-Optional Panel for Early Type Notek Multifunction Convoy Light
(12)Reworked Tow Cable Hooks on the Hull Rear Plate
(13)Metal Tow Cable (diameter: 0.5mm) * 150mm * 2
(14)Detailed Engine Bay Air Inlet / Outlet Grille Interior
(15)Some "Wirbelwind" Featured Additional Horizontal Bars in Engine
Bay Air Inlet / Outlet
(16)Reworked Portside Supporting Brackets for Spare Barrel Boxes
(17)Reworked Starboard Supporting Brackets for Spare Barrel Boxes /
Spare Antenna
Turret-Mount 2cm Flakvierling38&Turret Section
(1)4* 2cm Metal Barrel w/Textured Barrel Changing Hand Grips
(2)Reworked True-to-Scale Thickness Left & Right Gun Mantle
(3)Add Rich Details on the Schwebekreisvisier 38 Gun Sight
(4)Resin Late Type Switchbox (De-Functional)/ Sight Bracket for
"Wirbelwind" Turret-Mount 2cm Flakvierling38
(5)2 Types of Sight System Selectable
- Schwebekreisivisier38 Sight with Resin Late Type Switchbox
(De-Functional)/ Sight Bracket
- Schwebekreisivisier38 Sight with Early Type Switchbox
(De-Functional)/ Sight Bracket (Plastic Parts in Kit)
(6)Round Plates w/Raised Rib on Front Spent Shell Collector
(7)Detailed Ready Ammo Magazines Racks
(8)Detailed Ammo Magazine Receiver Bracket
(9)Dust Covers for Ammo Magazine Receiver (Optional)
(10)Detailed Gunner's Firing Foot Pedals
(11)Detailed Gunner's Seat Support Arm
(12)Detailed Cable Drum Bracket
(13)Detailed Elevation Angle Scale
(14)Detailed Pulley Trigger Mechanism
(15)Loader's Footrest (Optional)
(16)2 Types of Detailed Turret-Mount Ready Ammo Magazines Racks
(17)Turret Foliage Camouflage Attachment Holders
(18)Late Type 2cm Round Magazine * 4
(19)2cm Round Magazine Container * 1
